High sensitivity infrared body sensor switch ( DC12V)
Product Name:
High sensitivity infrared body sensor switch ( DC12V)Model No.:
LN-PIR-DCMinimum Order:
2
Product Abstract:

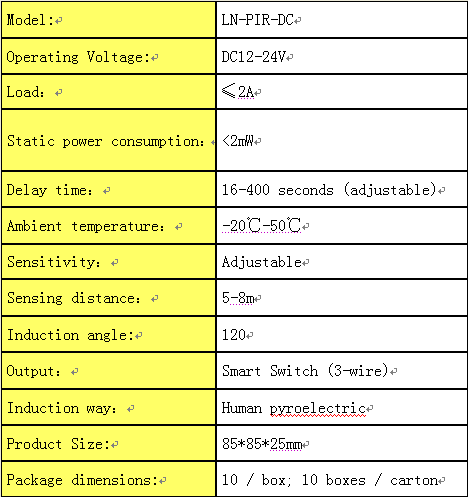

Brand: LEDON Operating voltage: DC12-24V Sensing ranges: 5-8m sensing principle: PIR Load: ≤2A Product Certification: CCC Output: Smart Switch (3-wire) Off delay time: 16-400 seconds Scope: automatic lighting hallways, corridors, bathrooms, basements, warehouses, garages and other places and other purposes
- Product Description
Feature
Automatic induction, people to light, from the lights out (people in the sensing range of activities, the delay time automatically extended until the people left after the delay switch was turned off), safe, convenient, energy saving.
Adjustable sensitivity and delay time (16 seconds -400 seconds).
Non-contact electronic switch, particularly for use in flammable gas safe place.
Automatic metering function，In the morning，The default will not induction the bright light，You can also set the day induction。
Advantage：
1.DC12V can be accessed by solar power.
2. High low temperature sensitivity compensation.
3. AC or DC 90V-250V wide Operating voltage range;
4. Imported human pyroelectric infrared sensor IC control, ultra-low power.
5. The use of automotive electronic smart switch as power management, with input over-voltage and electrostatic protection, output load flow, short circuit, over-temperature and battery over-voltage and over-discharge protection, can be connected to inductive and capacitive loads.
Note:
1, the wiring installation: Follow the instructions on the back of the switch wiring.
2, the installation: the operation must be performed by a professional electrician, please follow the wiring installation specifications.
3, in case the load is not working,First check the wiring is correct and whether the load for DC powering and Power Polarity Reverse
If the English expression error,Chinese version shall prevailThe company has the power of final interpretation
